Route Reflectors

  • gns3_route_reflection_and_policy_templates_lab_9
    Devices
    GNS3: 2 x 7200s (Route Reflectors), 5 x 3725s
    EVE-NG: 7 x IOS-XE 16.6.5s

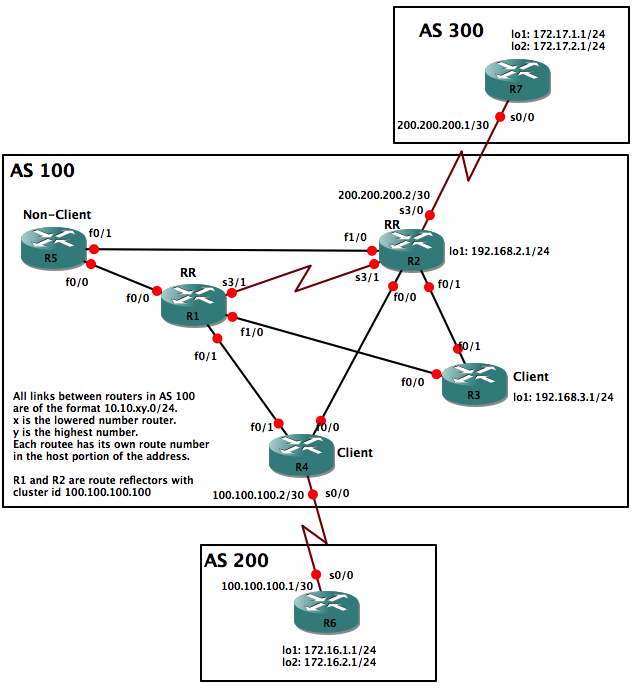

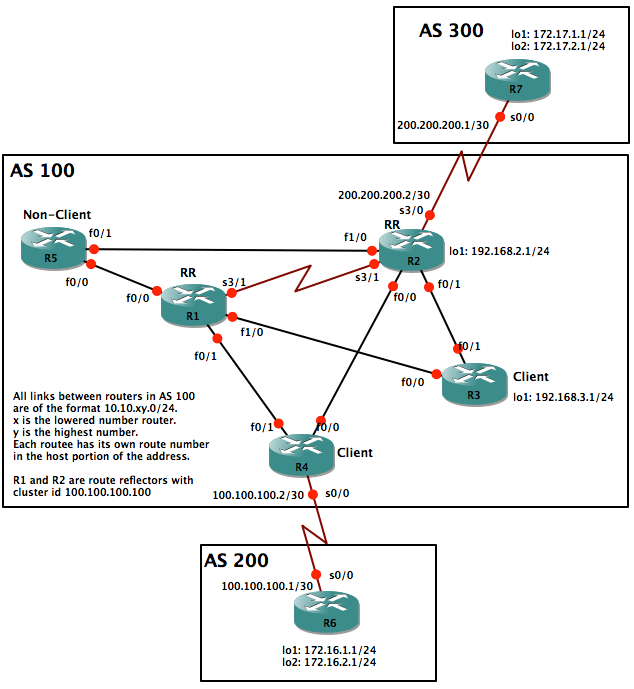

This lab contains a simple route reflector environment with a couple of eBGP peerings. Peer-session templates and peer-policy templates have been used to standardise the BGP sessions.
