SR TI-LFA Link Protection

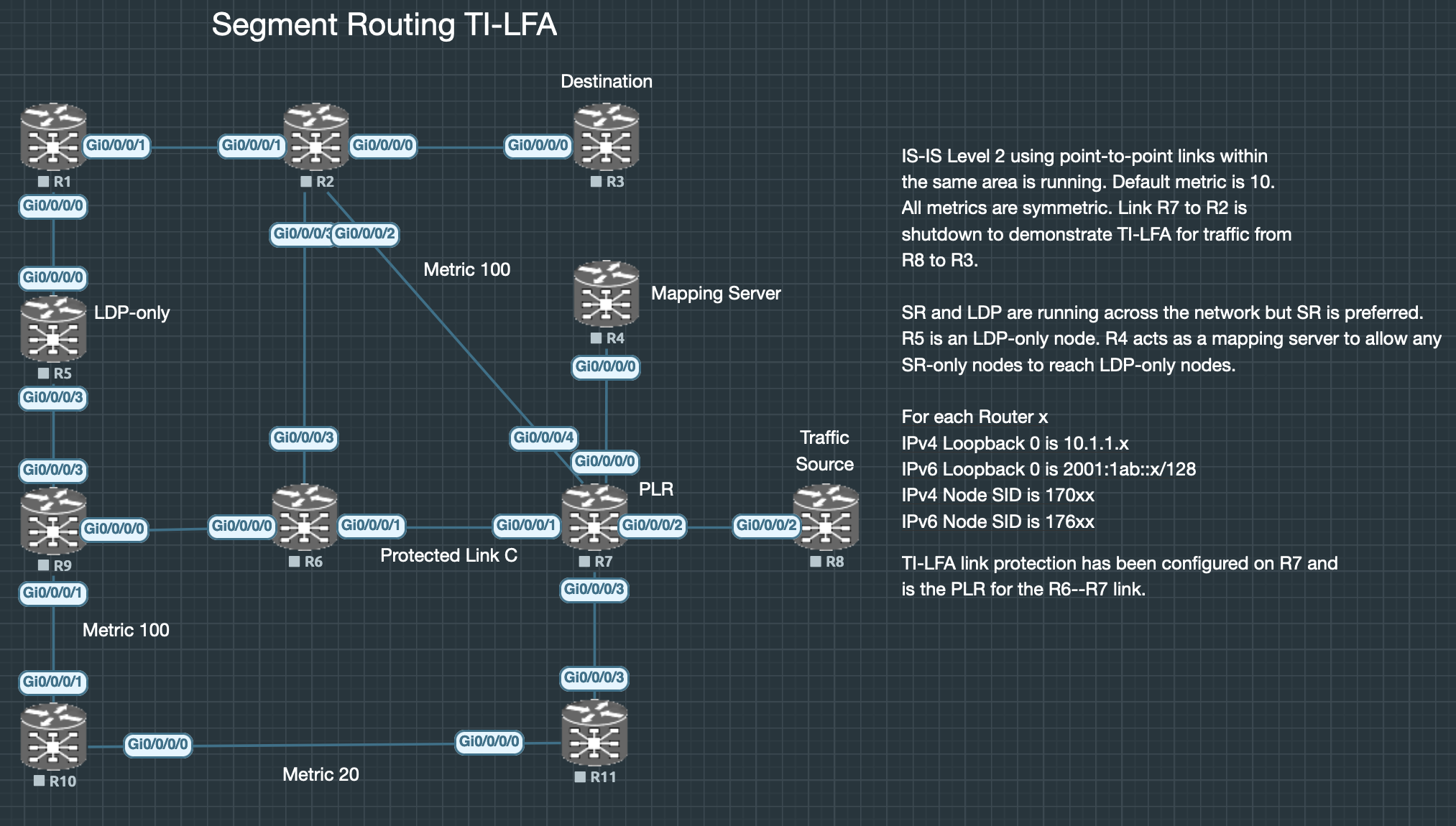

Use this lab to experiment with TI-LFA and SR and LDP interoperation. R7 has been configured with TI-LFA link protection – specifically when sending traffic from R8 to R3. SR and LDP are configured across the network, with SR being preferred. R5 is deliberately configured as an LDP only node with R4 as a mapping-server to support it.
