Inter-domain SRTE using PCEP

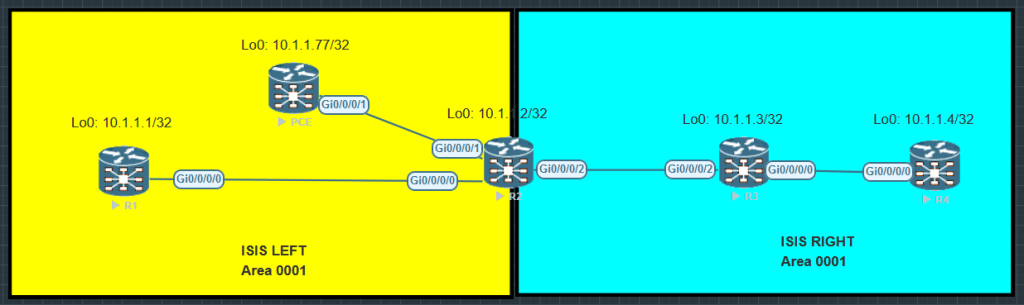

This lab shows an instance of PCEP creating SRTE policies between IGP instances.

In this case, R1 has a policy to R4 (matching color 100) using TE as the metric. The PCE is used to calculate the is path.

R2 is the ABR and is taking the ISIS link state information and advertising it via BGP-LS to the PCE.

There is no traffic configured to use the SRTE policy, this lab is just to demonstrate how it can be configured.

Devices
EVE-NG: 5 x IOS-XR 7.9.2s
