Asymmetric routing caused by unfiltered redistribution

This quirk demonstrates how the different administrative distances of BGP, combined with the Best Path Selection algorithm can cause asymmetric routing if redistribution isn’t done carefully.

As a reminder, each blog will follow 3 sections: The quirk, the search and the work. The quirk describes the problem, the search shows how a solution was reached and the work shows the technical and CLI aspects.

The quirk

The scenario we will be looking at is as follows:

blog2_image1_base_setup

The network consists of an MPLS core with multiple remote sites (only one is shown here). There is a dual homed breakout site, which passes through a firewall (performing security and address translation services as normal) and onwards to an internet facing WAN connection.

A default route is learned over eBGP from the Provider Edge router (PE4) connected to the internet facing Customer Edge router (CE4). This is redistributed into OSPF. The MPLS facing Customer Edge routers (CE1 and CE2) redistribute OSPF into BGP using the redistribute ospf 1 match internal external 2 command. The default and local 10.200.0.0/24 routes are advertised to the Provider Edge Routers (PE1 and PE2) and into the MPLS core. PE1 gives the routes received from CE1 a local preference of 200 making this WAN link preferred.

So that the breakout firewall has a path back to the MPLS sites, every MPLS sites range is advertised through eBGP into the MPLS core before being sent to CE1 and CE2 and redistributed into OSPF.

The quirk comes into play when you consider that, at this stage, no filtering of any kind is applied to the redistribution. Combine that with the order in which the BGP sessions of CE1 and CE2 establish and we quickly see problems with return traffic from the internet headed back to an MPLS site.

Consider the following sequence of events:

  1. CE2 establishes its eBGP neighborship to PE2 before CE1 establishes it session to PE1. CE2 learns about the MPLS LAN ranges from PE2. These eBGP learned routes have an AD of 20.
  1. CE2 redistributes these eBGP prefixes into the OSFP link state database (LSDB).
  1. CE1 receives the Type 5 LSAs and installs these prefixes into its RIB. These OSPF prefixes have an AD of 110.
  1. Without filtering, CE1 will redistribute these into BGP. BGP will give them a weight of 32,768 (because they are redistributed and thus locally sourced). Another, and sometimes overlooked, aspect is that these locally generated routes will be given an AD of 200.
  2. CE1 now establishes its neighborship to PE1 and receives the prefixes for the MPLS sites over eBGP (just as CE2 did). These eBGP prefixes are installed in the BGP RIB and have an AD of 20. They have a weight of 0 since they are learned from a neighbor.
  1. Now CE1 has to choose the best path back to any given MPLS site. One might think that the decision is easy, by comparing Administrative Distances. CE1 knows about the MPLS sites through eBGP and OSPF. eBGPs AD is 20. OSPFs AD is 110. Therefore eBGP should win right? Not quite. When a router receives paths to a given destination from multiple routing sources, it uses the Administrative Distance to judge the trustworthiness of the protocol – with the lowest one being most trusted. But, what needs to be considered here is that each routing protocol will put its best route forward to be considered… and in the case of BGP this could result in routes with different ADs. Let’s follow what happens:

OSPF has one only E2 route, which has an AD of 110. So OSPF puts this forward.

However the BGP Router process has two options to choose from. It runs through the BGP Best Path Selection Algorithm to decide (for a reminder of its steps take a look at this document).

It doesn’t get very far before a decision is made. In fact, it is on the first step! The route redistributed from OSPF has a weight of 32,768 whereas the one learned from its eBGP neighbor has a weight of 0. Higher weight wins, so BGP selects the prefix that was learned through redistribution and puts it forward. Remember this route has an AD of 200…

CE1 looks at its options and chooses the routing source with the lowest AD, which in this case is OSPF. As a result the OSPF route is installed in the IP RIB.

  1. CE1 does not even redistribute its eBGP learned prefixes into OSPF. Redistribution takes place from the IP RIB and there are no BGP routes in there.
  2. Because of this, the breakout firewall only sees routes for the MPLS sites from CE2 and sets CE2 as the next hop.

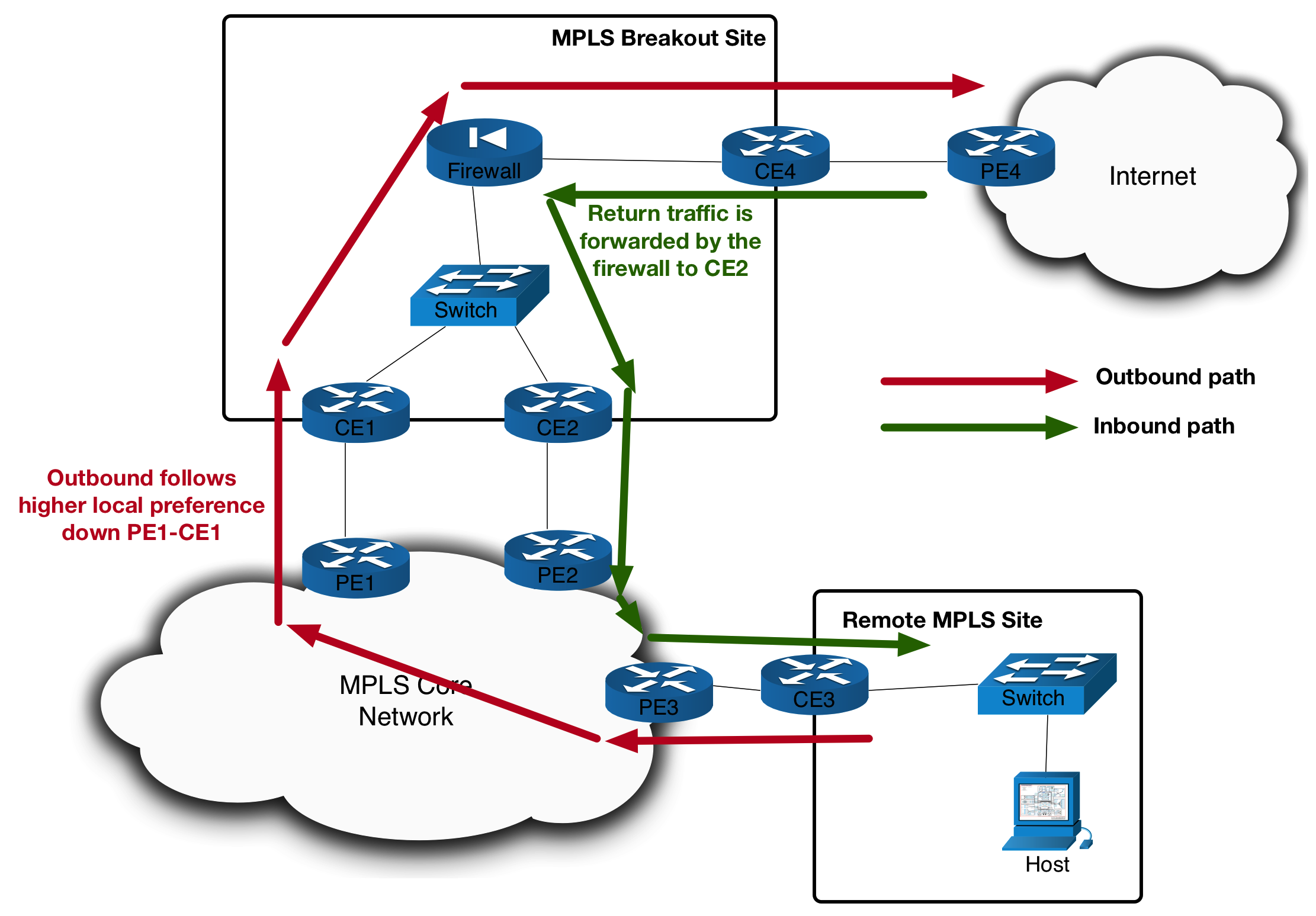

From here, we can see that traffic leaving a remote MPLS site destined for the internet, will go out via the primary CE1-PE1 link. However return traffic will go back via the CE2-PE2 link.

blog2_image2_traffic_path

Of course if CE1 establishes its BGP session first this is not an issue, however that is far from ideal. We needed to look at a way to either make sure CE1 brings up its BGP session first, prevent CE1 from learning routes from CE2, or prevent the redistribution back into BGP from OSPF.



The search

There are a number of ways to tackle this issue. Some better than others.

One possible approach would be to try to make sure that CE1 was always the first to bring its BGP peering up… or rather, to make sure that CE2 clears its BGP configuration if it detects CE1 bring its BGP neighborship up. The following EEM script, configured on CE2, was used to test this idea:

event manager applet lanprimarywan
 event track 123 state up
 action 1.0 syslog msg "START_EEM_SRIPT1: Soft clears BGP relationship
 when Primary Routers WAN link comes up"
 action 2.0 cli command "event timer countdown time 60"
 action 3.0 cli command "enable"
 action 4.0 cli command "clear ip bgp 10.10.1.6"
 action 5.0 cli command "end"
 action 6.0 syslog msg "BGP clear by EEM”
!
ip route 10.10.1.1 255.255.255.255 10.200.0.252
!
track 123 ip sla 123
!
ip sla 123
 icmp-echo 10.10.1.1 source-ip 10.200.0.253
 frequency 10
ip sla schedule 123 life forever start-time now
!

In short, CE2 would track the PE1 WAN interface. A static route has been included to make sure that it tracks it by going through CE1 (rather than its WAN connection). If this tracking object came up, CE2 would clear its BGP session. There is a delay timer put into the script to allow a minute for CE1 to bring up its BGP session.

There is a major problem with this approach however. Just because the WAN link is up doesn’t mean the PE1-CE1 BGP neighborship is up. The neighborship could drop for some other reason, without the link failing. If this happened CE2 would never clear its BGP session.

Plus, even if the tracking worked as expected, it might be deemed too disruptive to hard clear a BGP session for such an important site. As we will see, there are better options available.

A second possible approach involves preventing CE1 from learning any OSPF routes from CE2. This can be accomplished using a distribute-list. A distribute-list sits between the Shortest Path First calculation and the IP routing table. It doesn’t stop prefixes from entering the LSDB or affect the best route OSPF chooses. But it will prevent routes moving from the LSDB to the IP Routing table. If a distribute-list is applied inbound and allows only the local LAN ranges and the default route, then the MPLS site prefixes will never enter CE1s IP RIB from OSPF. Since redistribution is performed from the IP RIB, they will never show up in the BGP table.

The configuration would look as follows:

router ospf 1
 redistribute bgp 65489 metric 10 subnets
 network 10.200.0.0 0.0.0.255 area 0
 distribute-list LOCALS_AND_DEFAULT in
!
ip prefix-list LOCALS_AND_DEFAULT seq 5 permit 0.0.0.0/0
ip prefix-list LOCALS_AND_DEFAULT seq 10 permit 10.200.0.0/24
ip prefix-list LOCALS_AND_DEFAULT seq 100 deny 0.0.0.0/0 le 32

This configuration works just fine but there is a third option that makes use of tagging and allows for a cleaner approach.

This third option is outlined in the work section below. It involves making use of tagging and filtering using route-maps.

When prefixes are advertised to CE2 over eBGP and redistributed into OSPF, we can tag the prefixes. We can then configure a route-map on CE1 that only allows prefixes that do not have this tag to be redistributed into BGP.

Let’s explore the configuration of how this would be achieved.



The work

For this scenario I have built a GNS3 lab that looks as follows (this is available for download from the GNS3 page):

gns3_mpls_breakout_bgp_and_ospf_lab_7

Three MPLS sites are represented by loopbacks on the router named LNS (representing an L2TP Network Server in name only. It is simply a 3725 running BGP and MPLS). The ranges for these MPLS site are 192.168.1-3.0/24. A loopback with IP 50.50.50.50/32 on the INTERNET router (the cloud image) is used to simulate a public IP.

Here is the base configuration for CE1 and CE2 as far as OSPF and BGP are concerned:

hostname CE1
!
router ospf 1
 router-id 11.11.11.11
 log-adjacency-changes
 redistribute bgp 65489 metric 5 subnets
 network 10.200.0.0 0.0.0.255 area 0
!
router bgp 65489
 bgp log-neighbor-changes
 neighbor 10.10.1.1 remote-as 100
!
 address-family ipv4
  redistribute connected
  redistribute static
  redistribute ospf 1 match internal external 2
  neighbor 10.10.1.1 activate
  neighbor 10.10.1.1 allowas-in
  neighbor 10.10.1.1 soft-reconfiguration inbound
  neighbor 10.10.1.1 route-map BLOCK_LOCALS_AND_DEFAULT in
  neighbor 10.10.1.1 route-map ALLOW_LOCALS_AND_DEFAULT out
  default-information originate
  no auto-summary
  no synchronization
 exit-address-family
!
ip prefix-list LOCALS_AND_DEFAULT seq 5 permit 0.0.0.0/0
ip prefix-list LOCALS_AND_DEFAULT seq 10 permit 10.200.0.0/24
ip prefix-list LOCALS_AND_DEFAULT seq 100 deny 0.0.0.0/0 le 32
!
route-map BLOCK_LOCALS_AND_DEFAULT deny 10
 match ip address prefix-list LOCALS_AND_DEFAULT
!
route-map BLOCK_LOCALS_AND_DEFAULT permit 20
!
route-map ALLOW_LOCALS_AND_DEFAULT permit 10
 match ip address prefix-list LOCALS_AND_DEFAULT
hostname CE2
!
router ospf 1
 router-id 22.22.22.22
 log-adjacency-changes
 redistribute bgp 65489 metric 10 subnets
 network 10.200.0.0 0.0.0.255 area 0
!
router bgp 65489
 bgp log-neighbor-changes
 neighbor 10.10.1.5 remote-as 100
!
 address-family ipv4
  redistribute connected
  redistribute static
  redistribute ospf 1 match internal external 2
  neighbor 10.10.1.5 activate
  neighbor 10.10.1.5 allowas-in
  neighbor 10.10.1.5 soft-reconfiguration inbound
  neighbor 10.10.1.5 route-map BLOCK_LOCALS_AND_DEFAULT in
  neighbor 10.10.1.5 route-map ALLOW_LOCALS_AND_DEFAULT out
  default-information originate
  no auto-summary
  no synchronization
 exit-address-family
!
ip prefix-list LOCALS_AND_DEFAULT seq 5 permit 0.0.0.0/0
ip prefix-list LOCALS_AND_DEFAULT seq 10 permit 10.200.0.0/24
ip prefix-list LOCALS_AND_DEFAULT seq 100 deny 0.0.0.0/0 le 32
!
route-map BLOCK_LOCALS_AND_DEFAULT deny 10
 match ip address prefix-list LOCALS_AND_DEFAULT
!
route-map BLOCK_LOCALS_AND_DEFAULT permit 20
!
route-map ALLOW_LOCALS_AND_DEFAULT permit 10
 match ip address prefix-list LOCALS_AND_DEFAULT
!

Note that CE1 has a lower cost when redistributing routes. This is to ensure the breakout firewall will prefer going via CE1 given the option.

Let’s clear the BGP neighborship of CE1 and see what routes it selects:

CE1#clear ip bgp *
CE1#
*Mar 1 00:06:52.471: %BGP-5-ADJCHANGE: neighbor 10.10.1.1 Down User reset
CE1#
*Mar 1 00:06:53.759: %BGP-5-ADJCHANGE: neighbor 10.10.1.1 Up
CE1#
CE1#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
 D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
 N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
 E1 - OSPF external type 1, E2 - OSPF external type 2
 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
 ia - IS-IS inter area, * - candidate default, U - per-user static route
 o - ODR, P - periodic downloaded static route

Gateway of last resort is 10.200.0.1 to network 0.0.0.0

 100.0.0.0/30 is subnetted, 1 subnets
O E2 100.100.100.0 [110/20] via 10.200.0.1, 00:05:46, FastEthernet0/0
 99.0.0.0/29 is subnetted, 1 subnets
O 99.99.99.0 [110/2] via 10.200.0.1, 00:05:46, FastEthernet0/0
 10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
C 10.10.1.0/30 is directly connected, Serial0/0
B 10.10.1.4/30 [20/0] via 10.10.1.1, 00:00:21
C 10.200.0.0/24 is directly connected, FastEthernet0/0
O E2 192.168.1.0/24 [110/10] via 10.200.0.253, 00:00:24, FastEthernet0/0
O E2 192.168.2.0/24 [110/10] via 10.200.0.253, 00:00:24, FastEthernet0/0
O E2 192.168.3.0/24 [110/10] via 10.200.0.253, 00:00:24, FastEthernet0/0
O*E2 0.0.0.0/0 [110/5] via 10.200.0.1, 00:05:47, FastEthernet0/0
CE1#

So currently CE1 is preferring its E2 OSPF routes to reach the MPLS sites. When pinging from a remote MPLS site we see that it takes an outbound path across the PE1-CE1 link:

LNS#trace vrf CUST_A 50.50.50.50 source lo1

Type escape sequence to abort.
Tracing the route to 50.50.50.50

 1 10.1.3.2 [MPLS: Labels 18/21 Exp 0] 44 msec 48 msec 44 msec
 2 10.10.1.1 [MPLS: Label 21 Exp 0] 36 msec 32 msec 36 msec
 3 10.10.1.2 36 msec 32 msec 36 msec
 4 10.200.0.1 36 msec 84 msec 36 msec
 5 99.99.99.2 100 msec 96 msec 56 msec
 6 100.100.100.2 32 msec 80 msec 80 msec
LNS#

However the path back from the firewall traverses the CE2-PE2 link:

FW#trace 192.168.1.1

Type escape sequence to abort.
Tracing the route to 192.168.1.1

 1 10.200.0.253 32 msec 28 msec 8 msec
 2 10.10.1.5 36 msec 36 msec 36 msec
 3 10.1.2.2 [MPLS: Labels 16/20 Exp 0] 56 msec 40 msec 44 msec
 4 192.168.1.1 [MPLS: Label 20 Exp 0] 84 msec 60 msec 88 msec
FW#

The BGP table of CE1 helps to show what is happening:

CE1#sh bgp ipv4 unicast
BGP table version is 12, local router ID is 11.11.11.11
Status codes: s suppressed, d damped, h history, * valid, > best, i -
internal, r RIB-failure, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

 Network Next Hop Metric LocPrf Weight Path
*> 0.0.0.0 10.200.0.1 5 32768 ?
*> 10.10.1.0/30 0.0.0.0 0 32768 ?
* 10.10.1.1 0 0 100 ?
*> 10.10.1.4/30 10.10.1.1 0 100 ?
*> 10.200.0.0/24 0.0.0.0 0 32768 ?
*> 99.99.99.0/29 10.200.0.1 2 32768 ?
*> 100.100.100.0/30 10.200.0.1 20 32768 ?
* 192.168.1.0 10.10.1.1 0 100 ?
*> 10.200.0.253 10 32768 ?
* 192.168.2.0 10.10.1.1 0 100 ?
*> 10.200.0.253 10 32768 ?
* 192.168.3.0 10.10.1.1 0 100 ?
*> 10.200.0.253 10 32768 ?
CE1#

We can see that there are two paths to each MPLS site. The reason for its best path selection becomes clear when taking a closer look at the one of the prefixes:

CE1#sh bgp ipv4 unicast 192.168.1.0/24
BGP routing table entry for 192.168.1.0/24, version 4
Paths: (2 available, best #2, table Default-IP-Routing-Table)
 Not advertised to any peer
 100, (received & used)
 10.10.1.1 from 10.10.1.1 (1.1.1.1)
 Origin incomplete, localpref 100, valid, external
 Local
 10.200.0.253 from 0.0.0.0 (11.11.11.11)
 Origin incomplete, metric 10, localpref 100, weight 32768, valid,
 sourced, best
CE1#

The path via 10.1.1.1 has a weight of 0 since it is learned from an eBGP neighbor (as the word external implies). The path via CE2 is locally sourced (as the word sourced and the Local AS path imply) and has a weight of 32,768. Because of this, the second path, which has AD 200, is chosen as the best path and ultimately loses out to OSPF.

Now let’s look at fixing this using route-maps and tagging. The first step is to configure CE2 to tag any eBGP routes that it redistributes into OSPF with tag 10.

CCE2#conf t
Enter configuration commands, one per line. End with CNTL/Z.
CE2(config)#route-map SET_TAG permit 10
CE2(config-route-map)#set tag 10
CE2(config-route-map)#exit
CE2(config)#router ospf 1
CE2(config-router)#redistribute bgp 65489 metric 10 subnets route-map
SET_TAG

The OSPF LSDB now reflects this change:

CE2#sh ip ospf database external 192.168.1.0

 OSPF Router with ID (22.22.22.22) (Process ID 1)

 Type-5 AS External Link States

 LS age: 57
 Options: (No TOS-capability, DC)
 LS Type: AS External Link
 Link State ID: 192.168.1.0 (External Network Number )
 Advertising Router: 22.22.22.22
 LS Seq Number: 8000000C
 Checksum: 0xCE04
 Length: 36
 Network Mask: /24
 Metric Type: 2 (Larger than any link state path)
 TOS: 0
 Metric: 10
 Forward Address: 0.0.0.0
 External Route Tag: 10

CE2#

The next task is to configure CE1 to block redistribution for anything that has tag 10:

CE1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
CE1(config)#route-map BLOCK_TAG deny 10
CE1(config-route-map)#match tag 10
CE1(config-route-map)#route-map BLOCK_TAG permit 20
CE1(config-route-map)#exit
CE1(config)#router bgp 65489
CE1(config-router)# redistribute ospf 1 match internal external 2
route-map BLOCK_TAG

The effect is immediate. CE1 now prefers to the path over eBGP:

CE1#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
 D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
 N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
 E1 - OSPF external type 1, E2 - OSPF external type 2
 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
 ia - IS-IS inter area, * - candidate default, U - per-user static route
 o - ODR, P - periodic downloaded static route

Gateway of last resort is 10.200.0.1 to network 0.0.0.0

 100.0.0.0/30 is subnetted, 1 subnets
O E2 100.100.100.0 [110/20] via 10.200.0.1, 00:31:44, FastEthernet0/0
 99.0.0.0/29 is subnetted, 1 subnets
O 99.99.99.0 [110/2] via 10.200.0.1, 00:31:44, FastEthernet0/0
 10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
C 10.10.1.0/30 is directly connected, Serial0/0
B 10.10.1.4/30 [20/0] via 10.10.1.1, 00:26:19
C 10.200.0.0/24 is directly connected, FastEthernet0/0
B 192.168.1.0/24 [20/0] via 10.10.1.1, 00:00:26
B 192.168.2.0/24 [20/0] via 10.10.1.1, 00:00:26
B 192.168.3.0/24 [20/0] via 10.10.1.1, 00:00:26
O*E2 0.0.0.0/0 [110/5] via 10.200.0.1, 00:31:45, FastEthernet0/0
CE1#

In addition to this, there is now only one route for the MPLS sites in the BGP RIB:

CE1#show bgp ipv4 unicast
BGP table version is 15, local router ID is 11.11.11.11
Status codes: s suppressed, d damped, h history, * valid, > best, i -
internal, r RIB-failure, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

 Network Next Hop Metric LocPrf Weight Path
*> 0.0.0.0 10.200.0.1 5 32768 ?
*> 10.10.1.0/30 0.0.0.0 0 32768 ?
* 10.10.1.1 0 0 100 ?
*> 10.10.1.4/30 10.10.1.1 0 100 ?
*> 10.200.0.0/24 0.0.0.0 0 32768 ?
*> 99.99.99.0/29 10.200.0.1 2 32768 ?
*> 100.100.100.0/30 10.200.0.1 20 32768 ?
*> 192.168.1.0 10.10.1.1 0 100 ?
*> 192.168.2.0 10.10.1.1 0 100 ?
*> 192.168.3.0 10.10.1.1 0 100 ?
CE1#

Just to double check, we can clear the CE1 BGP session again to make sure that the change sticks:

CE1#
CE1#clear ip bgp *
CE1#
*Mar 1 00:36:04.463: %BGP-5-ADJCHANGE: neighbor 10.10.1.1 Down User reset
*Mar 1 00:36:05.283: %BGP-5-ADJCHANGE: neighbor 10.10.1.1 Up
CE1#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
 D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
 N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
 E1 - OSPF external type 1, E2 - OSPF external type 2
 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
 ia - IS-IS inter area, * - candidate default, U - per-user static route
 o - ODR, P - periodic downloaded static route

Gateway of last resort is 10.200.0.1 to network 0.0.0.0

 100.0.0.0/30 is subnetted, 1 subnets
O E2 100.100.100.0 [110/20] via 10.200.0.1, 00:35:32, FastEthernet0/0
 99.0.0.0/29 is subnetted, 1 subnets
O 99.99.99.0 [110/2] via 10.200.0.1, 00:35:32, FastEthernet0/0
 10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
C 10.10.1.0/30 is directly connected, Serial0/0
B 10.10.1.4/30 [20/0] via 10.10.1.1, 00:00:56
C 10.200.0.0/24 is directly connected, FastEthernet0/0
B 192.168.1.0/24 [20/0] via 10.10.1.1, 00:00:57
B 192.168.2.0/24 [20/0] via 10.10.1.1, 00:00:57
B 192.168.3.0/24 [20/0] via 10.10.1.1, 00:00:57
O*E2 0.0.0.0/0 [110/5] via 10.200.0.1, 00:35:33, FastEthernet0/0
CE1#

Success. The route-map has successfully blocked the OSPF being redistributed into the BGP table. As a result the route that the BGP Router process puts forth is the eBGP route, which wins over OSPF with an AD of 20.

A couple of side points to note: An alterative to this approach is to adjust the redistributed routes to make the BGP Best Path Algorithm select the eBGP route over the locally redistributed route. We could have done this using a route-map that resets the weight of the redistributed routes to zero and sets the local preference to 95 (below the default of 100). The config would look as follows:

router bgp 65489
 address-family ipv4
 redistribute ospf 1 match internal external 2 route-map
 LOWER_WEIGHT_AND_PREF
!
route-map LOWER_WEIGHT_AND_PREF permit 10
 set local-preference 95
 set weight 0

However in this network scenario, there is no real reason to redistribute the MPLS sites back into BGP. It is safer to block them entirely.

It’s also prudent to apply this configuration in the opposite direction as well (tag redistributed routes on CE1 and block them on CE2).

And finally, you might have noticed the route-maps applied inbound and outbound on the eBGP sessions in the base config shown above. These are done to avoid routes looping from BGP to OSPF and back into BGP. MPLS solutions often have multiple sites with the same private AS number meaning allowas-in or as-override must be used to bypass BGP loop prevention (whereby a router running BGP will ignore updates for prefixes that have its own AS number in the AS_PATH attribute). This tagging could easily be used on the outbound advertisements, instead of the prefix-lists shown above. Tagging is more dynamic than manually defining the local ranges using prefix-lists.

Finally let’s confirm routing is following the same path inbound and outbound:

LNS#trace vrf CUST_A 50.50.50.50 source lo1

Type escape sequence to abort.
Tracing the route to 50.50.50.50

 1 10.1.3.2 [MPLS: Labels 18/21 Exp 0] 28 msec 36 msec 40 msec
 2 10.10.1.1 [MPLS: Label 21 Exp 0] 36 msec 36 msec 32 msec
 3 10.10.1.2 40 msec 24 msec 32 msec
 4 10.200.0.1 40 msec 48 msec 40 msec
 5 99.99.99.2 88 msec 56 msec 52 msec
 6 100.100.100.2 92 msec 84 msec 72 msec
LNS#
FW#trace 192.168.1.1 source fa0/0

Type escape sequence to abort.
Tracing the route to 192.168.1.1

 1 10.200.0.253 20 msec
 2 10.10.1.1 24 msec
 3 10.1.2.2 [MPLS: Labels 16/20 Exp 0] 60 msec
 4 192.168.1.1 [MPLS: Label 20 Exp 0] 44 msec 20 msec 44 msec
FW#

Looks good. Routing is symmetric and as expected.

There more ways to solve this problem than I have shown here. Feel free to play around with the lab to see what you can come up with.

Feeback is more than welcome. Let me know if you found this blog useful or interesting. Thanks for reading.

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
