Site by Site MPLS Breakout Migration

This months quirk is a bit late. I have been studying furiously and managed to pass my Deploying Cisco Service Provider Advanced Network Routing exam last week. Only two to go before I get CCNP SP. 🙂

Another plus side is that I have a tonne of study notes that I will be uploading over the next few weeks. So anyone interested in Multicast, BGP or IPv6 watch this space.

Anyways, this quirk looks at a design solution whereby a 100+ site MPLS customer needed to change the Service Provider for their primary internet breakout one site at a time…



The quirk

The customer had an L3VPN MPLS cloud with a new ISP, but still had their primary internet breakout with their old ISP.

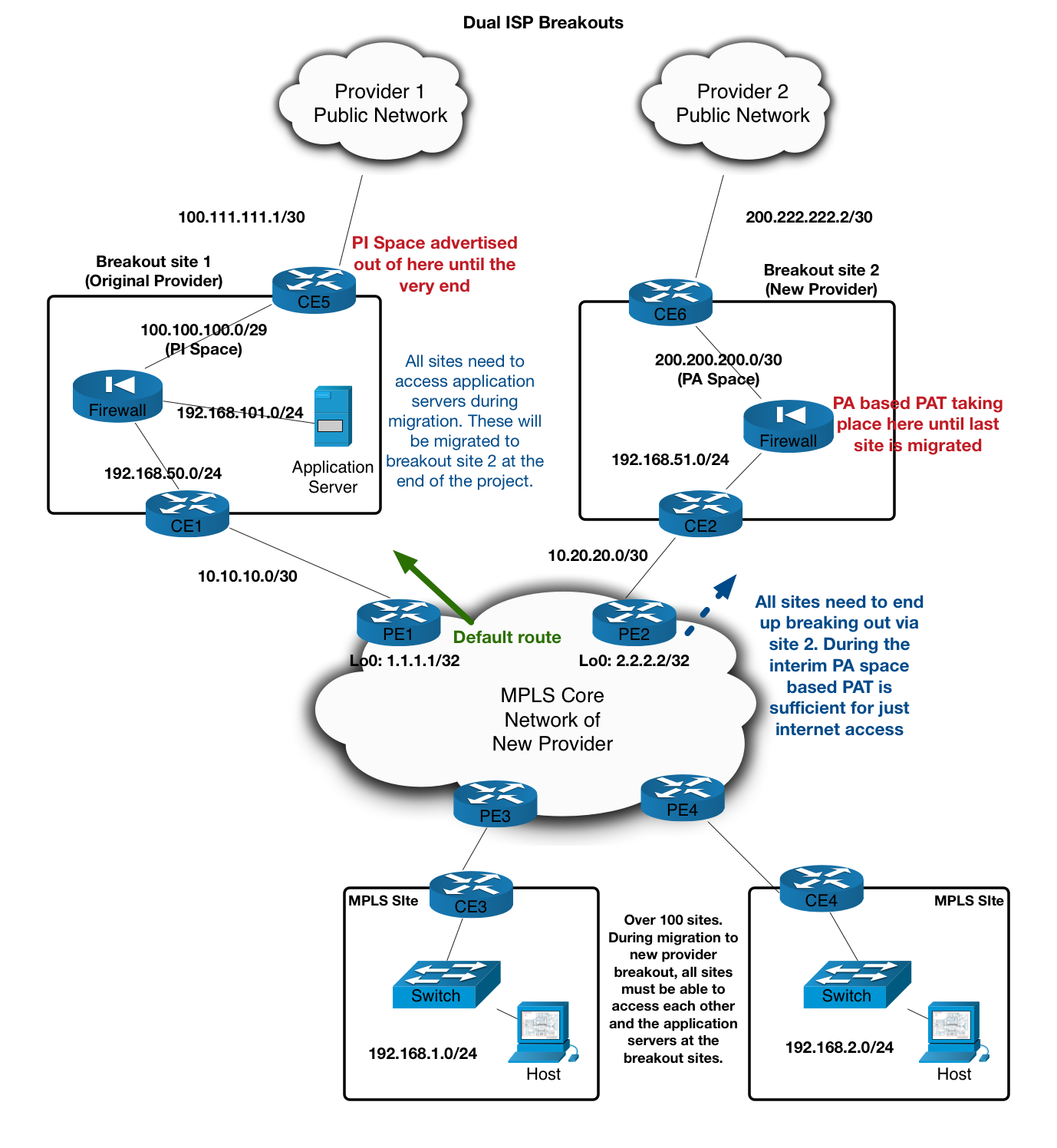

The below diagram shows a stripped down version of such a network, illustrating the basic idea:

blog3_image1_base_setup

So whilst all of the MPLS sites connected to the new ISPs core, the link to the internet was still going out through a site that connected to the old provider.

The customer needed to move the default route and primary breakout over but did not want to do a single “big bang” migration and move all of the sites at once. Rather, they wanted to migrate one site at a time.

The search

The first step in looking at how to accomplish this was to break down the requirements. The following conditions needed to be met:

  • Each site must still be able to access all other sites and the file/application servers at the primary breakout site. These servers would be moved to the new ISP connection and breakout site 2 last of all.
  • As each site moves over to the new breakout, they only need PAT to gain access to the internet – no public services are run at the remote sites.
  • The PI space held by the customer, used for public facing services on the application servers, would be moved to the new provider once all site were migrated.
  • Sites must be able to be moved one at a time without affecting any other sites.
  • The majority of MPLS sites were single homed with a static default.

Looking at these requirements gave us a good idea of what we needed to achieve.

Policy based routing was considered first. Adjusting either the next hop or VRF using the source address. However this would require too much overhead in identifying the site that had been moved, either the by community value or source prefix, combined with setting the next hop or VRF to use.

Ultimately, the use of a second VRF with “all but default” route leaking was decided upon. This involved creating a second VRF with a default route pointing to the new ISP breakout. All routes except the defaults were to be leaked between these VRFs.

This meant that all we needed to migrate a site, was change the VRF to which the attachment circuit belonged.

It is worth highlight that had there been a significant number of multihomed sites implementing BGP, using policy based routing may have been preferred. This is because a large number of BGP neighborships would need to be reconfigured to the correct VRF.

The work

The below output has been taken from a simulation. The MPLS sites have been represented using loopbacks1-3 on PE_RTR.

First we will take a look at a traceroute to the internet (to IP 50.50.50.50) and the routing table for the original VRF before any changes were made:

PE_RTR#sh ip route vrf CUST-A-OLD-ISP

Routing Table: CUST-A-OLD-ISP
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
 D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
 N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
 E1 - OSPF external type 1, E2 - OSPF external type 2
 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
 ia - IS-IS inter area, * - candidate default, U - per-user static route
 o - ODR, P - periodic downloaded static route

Gateway of last resort is 1.1.1.1 to network 0.0.0.0

 10.0.0.0/30 is subnetted, 3 subnets
B 10.10.11.0/30 [200/0] via 2.2.2.2, 00:15:34
B 10.10.10.0/30 [200/0] via 1.1.1.1, 00:15:34
B 10.20.20.0/30 [200/0] via 2.2.2.2, 00:15:34
C 192.168.1.0/24 is directly connected, Loopback1
C 192.168.2.0/24 is directly connected, Loopback2
C 192.168.3.0/24 is directly connected, Loopback3
B 192.168.50.0/24 [200/0] via 1.1.1.1, 00:15:34
B 192.168.51.0/24 [200/0] via 2.2.2.2, 00:15:34
B 192.168.101.0/24 [200/0] via 1.1.1.1, 00:16:19
B* 0.0.0.0/0 [200/5] via 1.1.1.1, 00:15:43
PE_RTR#

PE_RTR#trace vrf CUST-A-OLD-ISP 50.50.50.50 source lo1

Type escape sequence to abort.
Tracing the route to 50.50.50.50

 1 10.1.3.2 [MPLS: Labels 17/20 Exp 0] 116 msec 72 msec 48 msec
 2 10.10.10.1 [MPLS: Label 20 Exp 0] 24 msec 44 msec 24 msec
 3 10.10.10.2 20 msec 20 msec 36 msec
 4 192.168.50.1 28 msec 56 msec 24 msec
 5 100.100.100.1 116 msec 52 msec 72 msec
 6 100.111.111.1 64 msec 140 msec 60 msec
PE_RTR#

So the WAN range of the breakout in this simulation is 100.100.100.0/29. This is their PI space. Notice the range 192.168.101.0/24, which is the subnet that the file/application servers are on.

The VRF configuration on the PEs is straightforward.

ip vrf CUST-A-OLD-ISP
 description VRF for Old ISP Breakout
 rd 100:1
 route-target export 100:1
 route-target import 100:1

Before we created the new VRF, we needed a way to differentiate what can and cannot be leaked. For this we used filtering when exporting RTs. We designated the RT 100:100 for routes that should be leaked.

First we started by making a prefix list that catches the default route:

ip prefix-list defaultRoute seq 5 permit 0.0.0.0/0
ip prefix-list defaultRoute seq 50 deny 0.0.0.0/0 le 32

Then we specified a route-map that attached the RT 100:100 to prefixes that are not the default route

route-map ALL-EXCEPT-DEFAULT permit 10
 match ip address prefix-list defaultRoute
!
route-map ALL-EXCEPT-DEFAULT permit 20
 set extcommunity rt 100:100 additive

Note the use of the additive keyword so as not to overwrite any existing communities.

Once we had these setup, we created the new VRF and applied this route-map in the form of an export-map to set the correct RTs. We made sure to import 100:100 and then applied the same to original VRF.

ip vrf CUST-A-NEW-ISP
 description VRF for New ISP Breakout
 rd 100:2
 export map ALL-EXCEPT-DEFAULT
 route-target export 100:2
 route-target import 100:100
 route-target import 100:2
!
ip vrf CUST-A-OLD-ISP
 description VRF for Old ISP Breakout
 rd 100:1
 export map ALL-EXCEPT-DEFAULT
 route-target export 100:1
 route-target import 100:100
 route-target import 100:1

From here, after deploying this to all the relevant PEs and injecting a new default route, the migration from one VRF to another was fairly straight forward. Below shows an example using a simulated loopback (the principle would be the same for the incoming attachment circuit to a customer site):

PE_RTR(config)#interface Loopback1
PE_RTR(config-if)# ip vrf forwarding CUST-A-NEW-ISP
% Interface Loopback1 IP address 192.168.1.1 removed due to enabling
VRF CUST-A-NEW-ISP
PE_RTR(config-if)# ip address 192.168.1.1 255.255.255.0

If we look at the routing table for this new vrf we see the following:

PE_RTR#sh ip route vrf CUST-A-NEW-ISP

Routing Table: CUST-A-NEW-ISP
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
 D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
 N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
 E1 - OSPF external type 1, E2 - OSPF external type 2
 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
 ia - IS-IS inter area, * - candidate default, U - per-user static route
 o - ODR, P - periodic downloaded static route

Gateway of last resort is 2.2.2.2 to network 0.0.0.0

 10.0.0.0/30 is subnetted, 3 subnets
B 10.10.11.0/30 [200/0] via 2.2.2.2, 00:16:16
B 10.10.10.0/30 [200/0] via 1.1.1.1, 00:16:16
B 10.20.20.0/30 [200/0] via 2.2.2.2, 00:16:16
C 192.168.1.0/24 is directly connected, Loopback1
B 192.168.2.0/24 is directly connected, 00:16:17, Loopback2
B 192.168.3.0/24 is directly connected, 00:16:23, Loopback3
B 192.168.50.0/24 [200/0] via 1.1.1.1, 00:16:16
B 192.168.51.0/24 [200/0] via 2.2.2.2, 00:16:18
B 192.168.101.0/24 [200/0] via 1.1.1.1, 00:16:20
B* 0.0.0.0/0 [200/0] via 2.2.2.2, 00:16:18
PE_RTR#

An interesting side note here is that even though Loopback2 and 3 are directly connected, they are shown as having been learned through BGP. This is the result of the import from the original VRF. Indeed upon closer inspection of one of the prefixes we see the 100:100 community:

PE_RTR#sh bgp vpnv4 unicast vrf CUST-A-NEW-ISP 192.168.3.0/24
BGP routing table entry for 100:2:192.168.3.0/24, version 47
Paths: (1 available, best #1, table CUST-A-NEW-ISP)
 Not advertised to any peer
 Local, imported path from 100:1:192.168.3.0/24
 0.0.0.0 from 0.0.0.0 (3.3.3.3)
 Origin incomplete, metric 0, localpref 100, weight 32768, valid,
external, best
 Extended Community: RT:100:1 RT:100:100
 mpls labels in/out nolabel/aggregate(CUST-A-OLD-ISP)

And looking at the default route we see no such community and a different next hop from the original table.

PE_RTR#sh bgp vpnv4 unicast vrf CUST-A-NEW-ISP 0.0.0.0
BGP routing table entry for 100:2:0.0.0.0/0, version 40
Paths: (1 available, best #1, table CUST-A-NEW-ISP)
 Not advertised to any peer
 65489
 2.2.2.2 (metric 3) from 2.2.2.2 (2.2.2.2)
 Origin incomplete, metric 5, localpref 200, valid, internal, best
 Extended Community: RT:100:2
 mpls labels in/out nolabel/23

The old VRFs table still shows a route for the newly migrated site (although now learned via BGP) and the default route is still as it was originally:

PE_RTR#sh ip route vrf CUST-A-OLD-ISP

Routing Table: CUST-A-OLD-ISP
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
 D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
 N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
 E1 - OSPF external type 1, E2 - OSPF external type 2
 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
 ia - IS-IS inter area, * - candidate default, U - per-user static route
 o - ODR, P - periodic downloaded static route

Gateway of last resort is 1.1.1.1 to network 0.0.0.0

 10.0.0.0/30 is subnetted, 3 subnets
B 10.10.11.0/30 [200/0] via 2.2.2.2, 00:15:34
B 10.10.10.0/30 [200/0] via 1.1.1.1, 00:15:34
B 10.20.20.0/30 [200/0] via 2.2.2.2, 00:15:34
B 192.168.1.0/24 is directly connected, 00:15:36, Loopback1
C 192.168.2.0/24 is directly connected, Loopback2
C 192.168.3.0/24 is directly connected, Loopback3
B 192.168.50.0/24 [200/0] via 1.1.1.1, 00:15:34
B 192.168.51.0/24 [200/0] via 2.2.2.2, 00:15:34
B 192.168.101.0/24 [200/0] via 1.1.1.1, 00:16:19
B* 0.0.0.0/0 [200/5] via 1.1.1.1, 00:15:43
PE_RTR#
PE_RTR#sh bgp vpnv4 unicast vrf CUST-A-OLD-ISP 0.0.0.0
BGP routing table entry for 100:1:0.0.0.0/0, version 15
Paths: (1 available, best #1, table CUST-A-OLD-ISP)
 Not advertised to any peer
 65489
 1.1.1.1 (metric 3) from 1.1.1.1 (1.1.1.1)
 Origin incomplete, metric 0, localpref 100, valid, internal, best
 Extended Community: RT:100:1
 mpls labels in/out nolabel/26

Finally, a traceroute test shows that the newly migrated site accesses the internet via a different site and can still access the application server subnet

PE_RTR#trace vrf CUST-A-NEW-ISP 50.50.50.50 source lo1

Type escape sequence to abort.
Tracing the route to 50.50.50.50

 1 10.1.3.2 [MPLS: Labels 16/20 Exp 0] 44 msec 40 msec 52 msec
 2 10.20.20.1 [MPLS: Label 20 Exp 0] 32 msec 36 msec 52 msec
 3 10.20.20.2 52 msec 40 msec 32 msec
 4 192.168.51.1 54 msec 39 msec 31 msec
 5 200.200.200.2 68 msec 60 msec 32 msec
 6 200.222.222.2 65 msec 143 msec 62 msec

PE_RTR#
PE_RTR#trace vrf CUST-A-NEW-ISP 192.168.101.1 source lo1

Type escape sequence to abort.
Tracing the route to 192.168.101.1

 1 10.1.3.2 [MPLS: Labels 16/22 Exp 0] 56 msec 52 msec 44 msec
 2 10.10.10.1 [MPLS: Label 22 Exp 0] 36 msec 24 msec 24 msec
 3 10.10.10.2 40 msec 40 msec 36 msec
 4 192.168.50.1 26 msec 57 msec 23 msec
 5 192.168.101.1 32 msec 48 msec 36 msec
PE_RTR#

One final point to make is that advertising the PI space to both providers for backup purposes was a possibility. as-path prepend could have been used from breakout site 2 to make it less preferred. But complications come into play depending on how each provider advertises the PI space and whether they honour any adjustments that the customer makes. Should return traffic not follow the same path, stateful firewall sessions would also encounter also difficulty.

So a pretty straight forward solution in the end but interesting from the perspective of a migration standpoint. I am interest to hear thoughts on whether anyone would have taken a different approach. Perhaps we should have done policy based routing or maybe another solution? As usual thoughts are always welcome.
